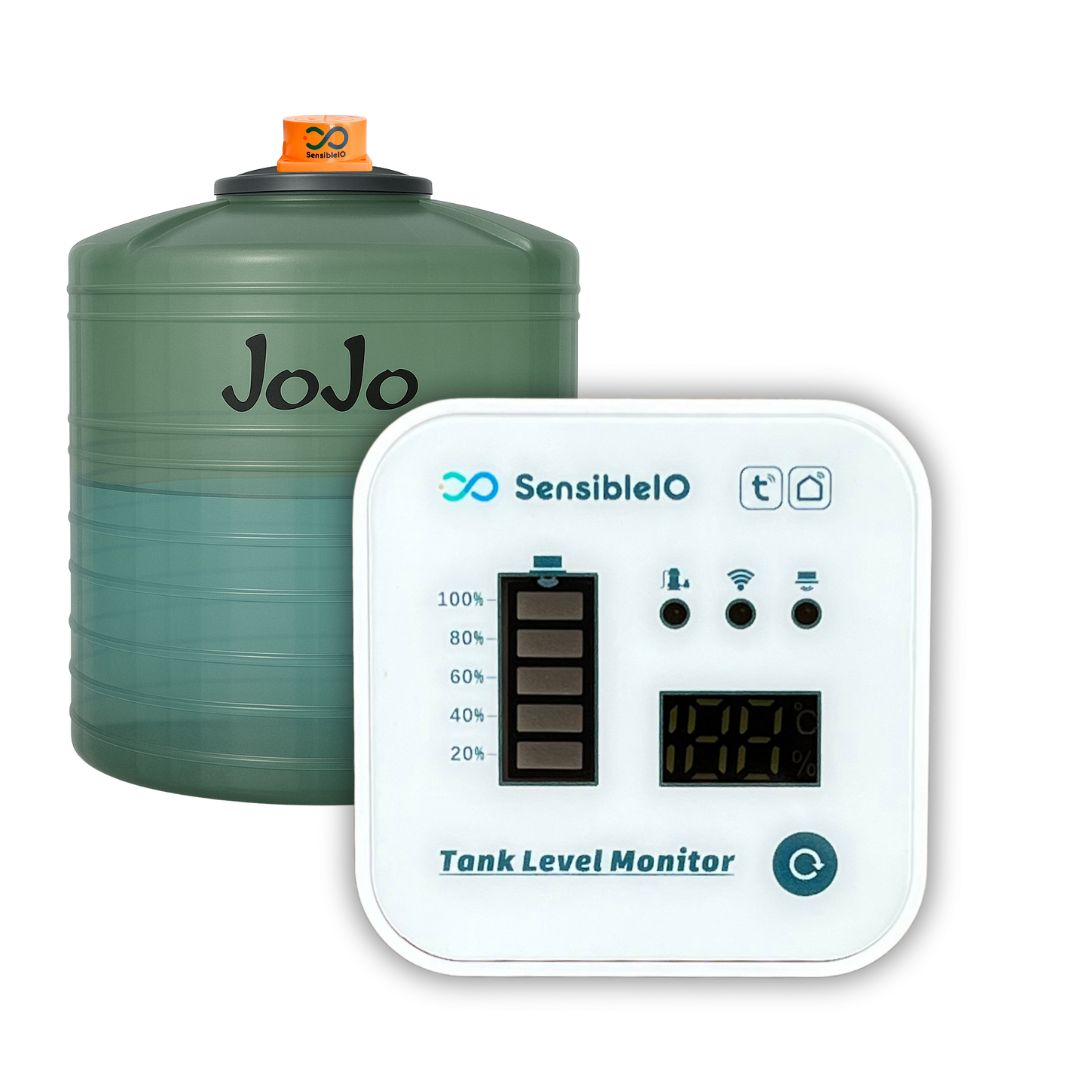

Long Range RF Water Tank Level Monitor

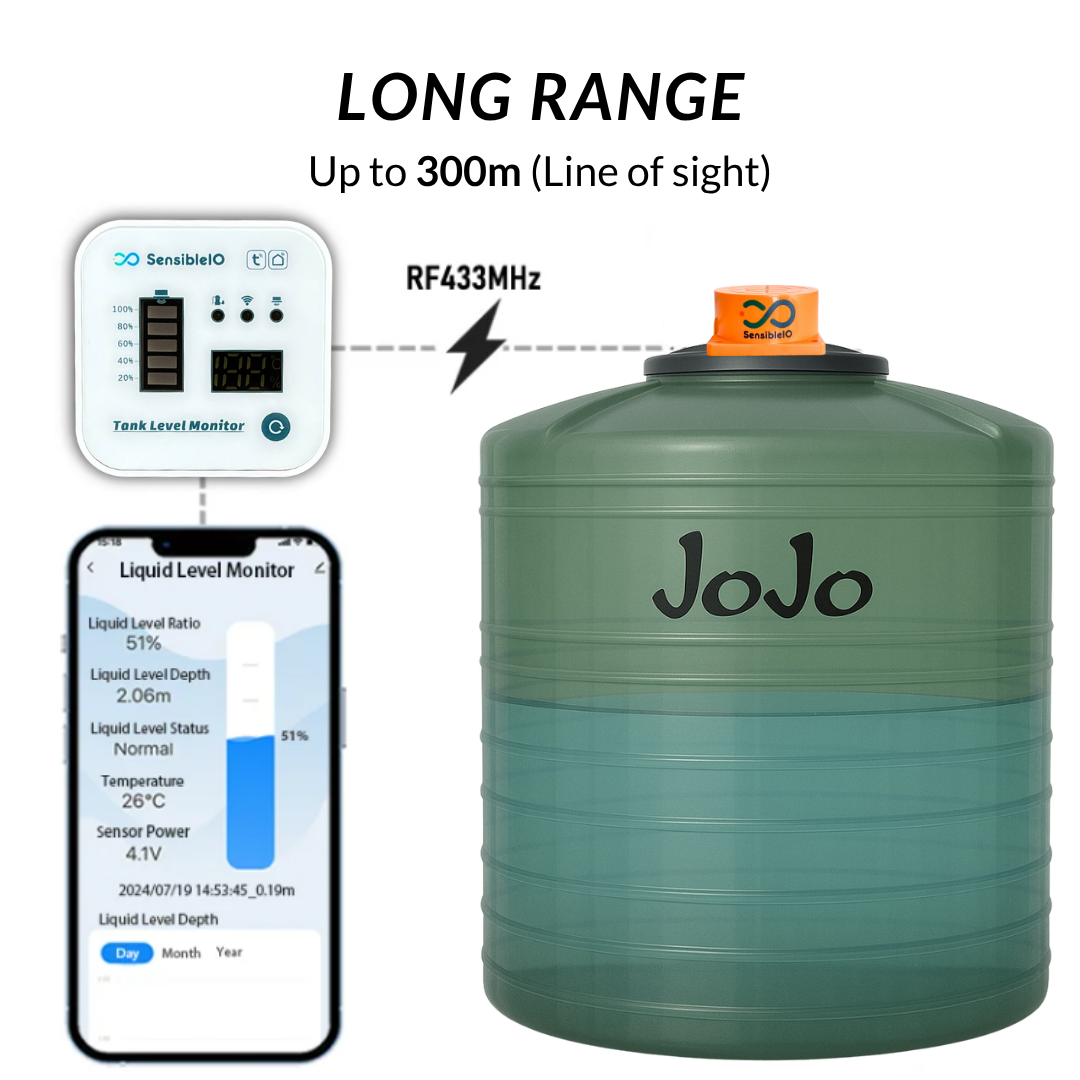

• The sensor communicates with the gateway via RF with a range of up to 300m line of sight.
• The gateway connects to your WiFi router with a range of up to 50m indoors.

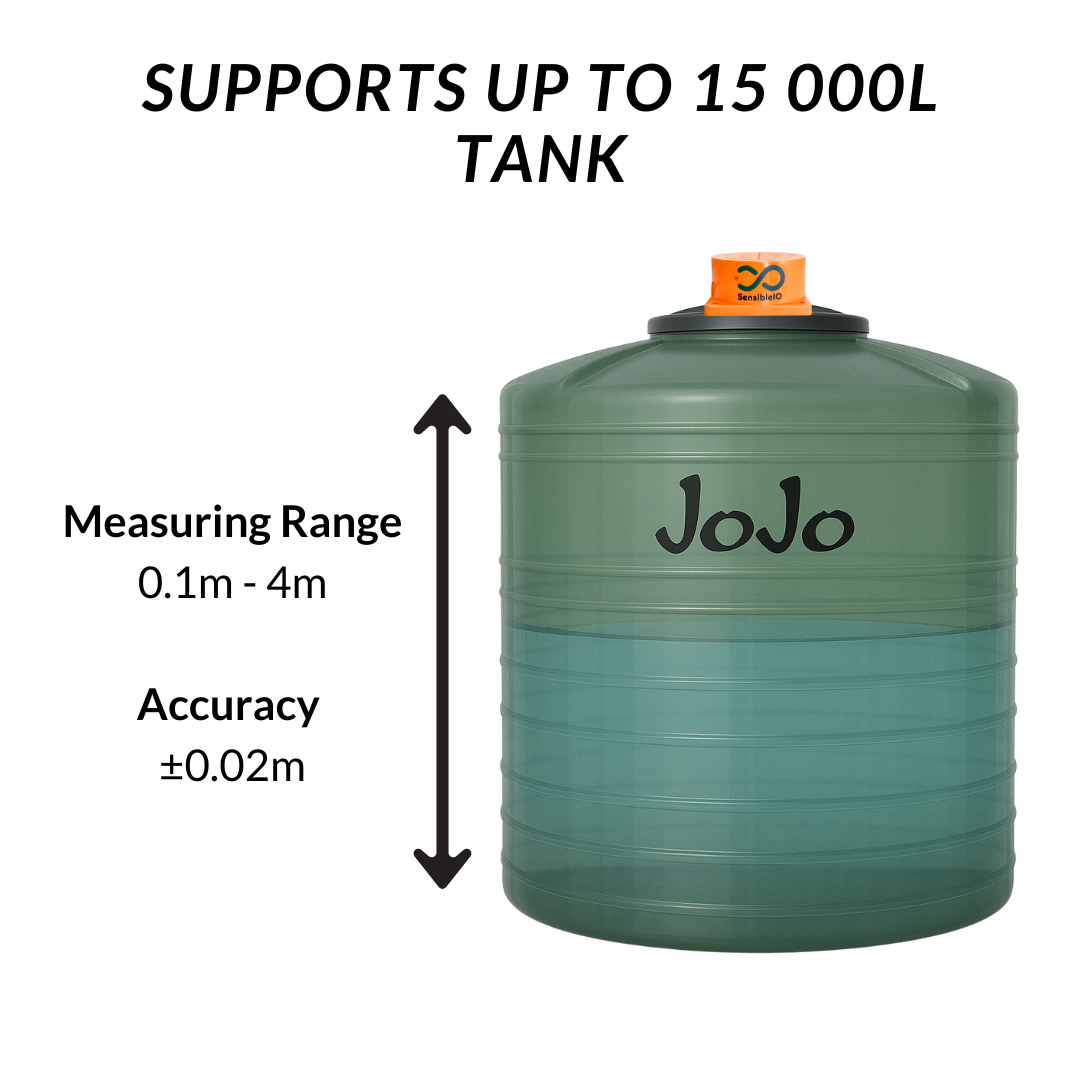

• The ultrasonic sensor measures water levels from 0.1m to 4.0m in depth.
• Tanks up to 15,000 litres are supported.
• The measurement accuracy is 0.02m for reliable monitoring.

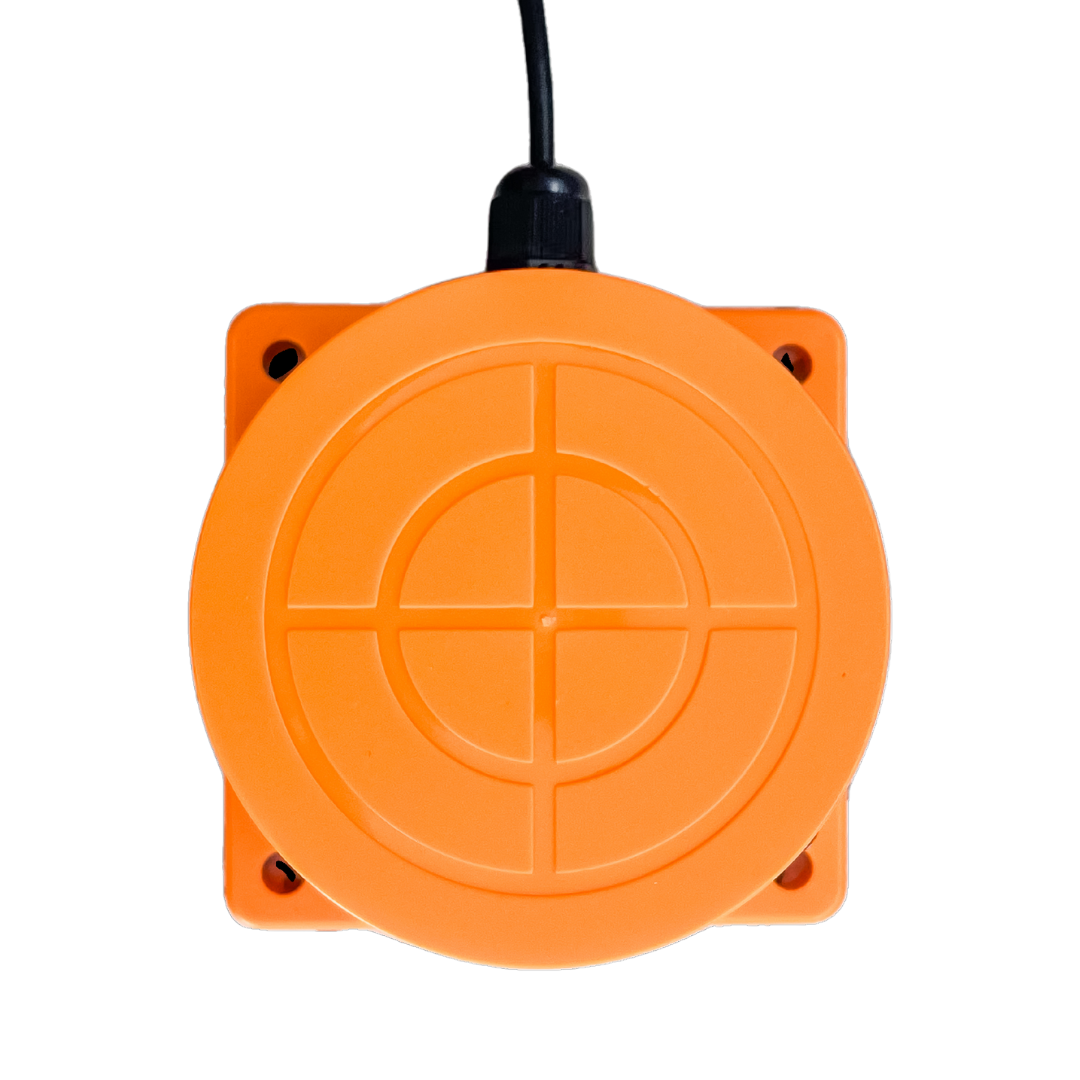

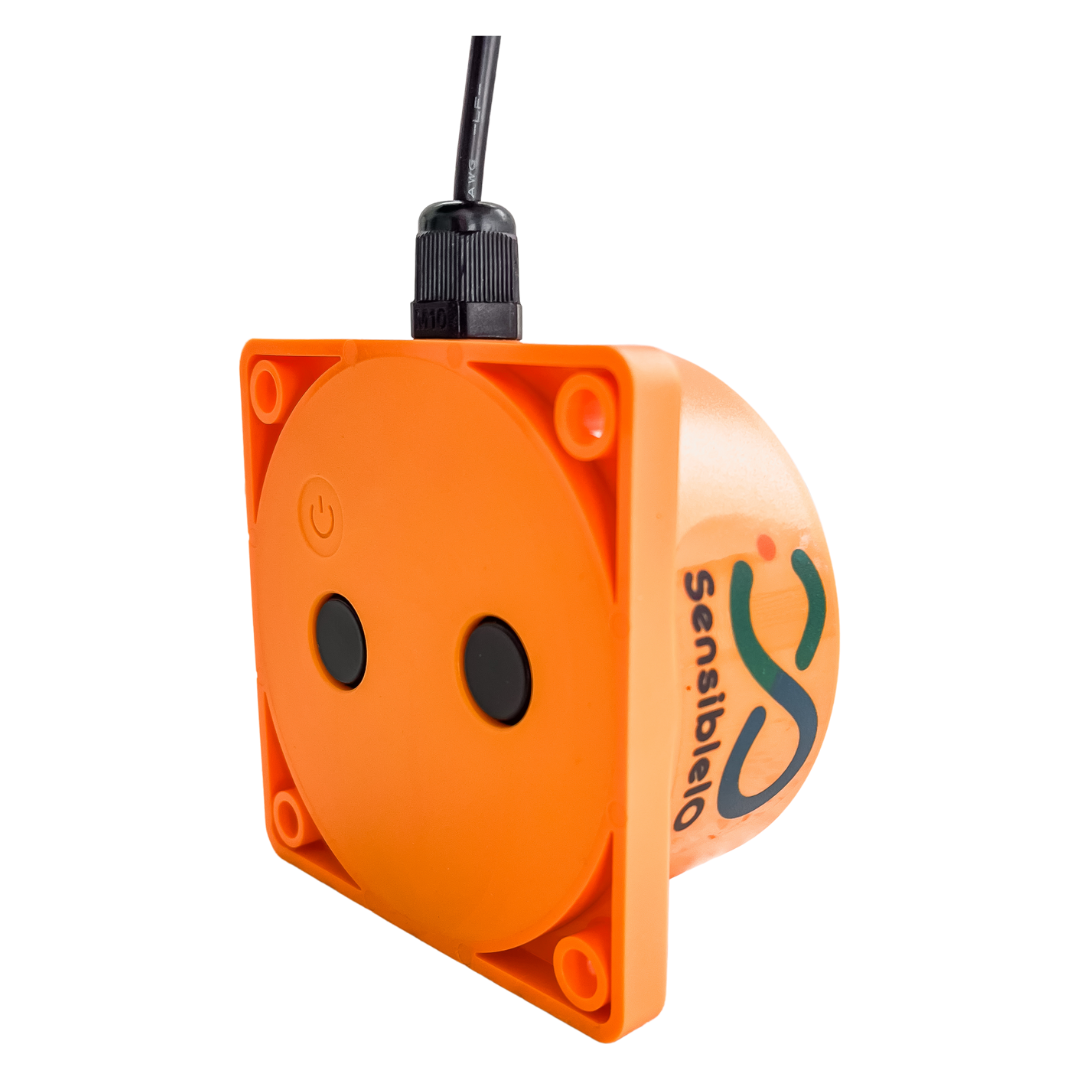

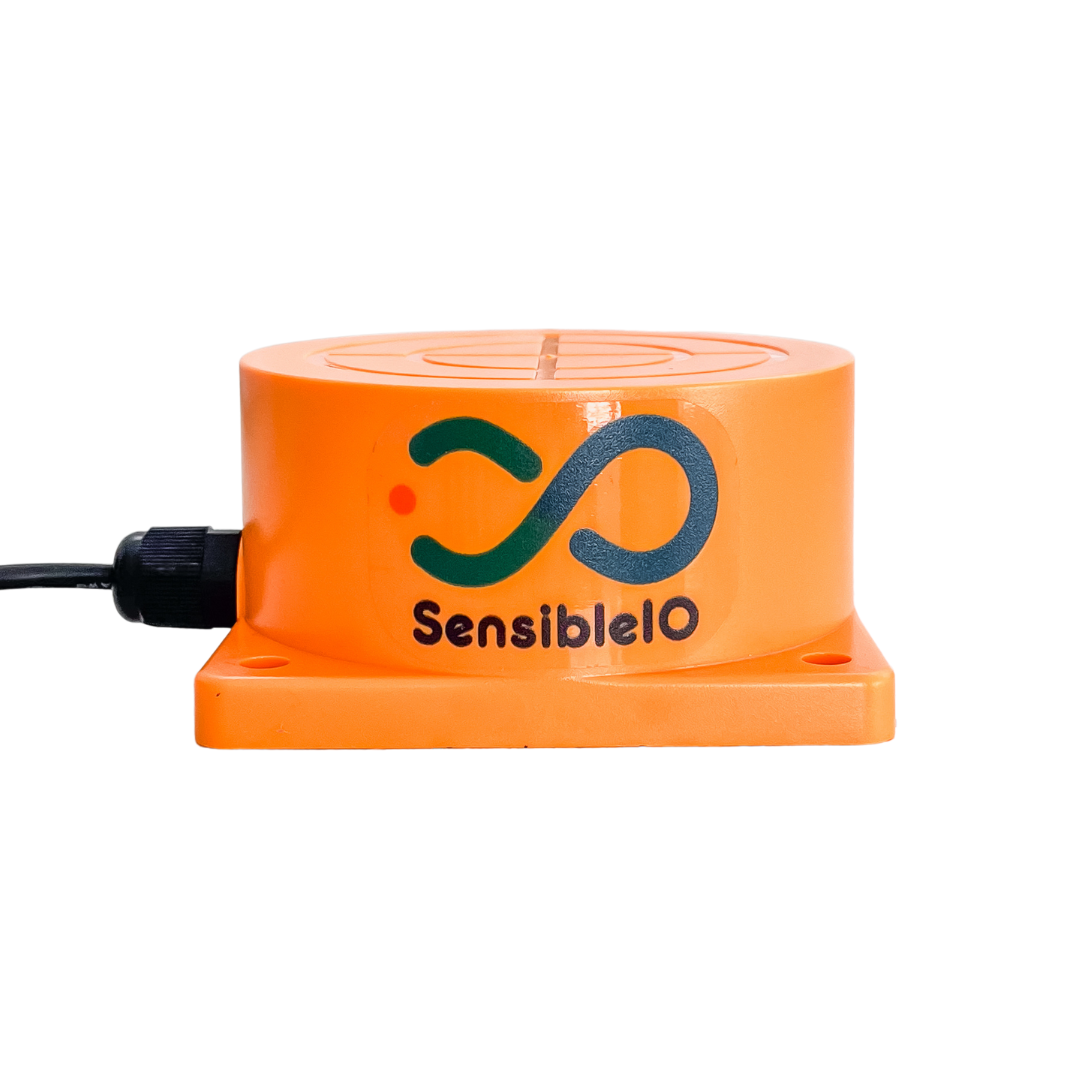

• The sensor uses ultrasonic technology and is housed in a weatherproof casing.
• The gateway is USB-powered, and a cable is included.
• The sensor is powered by the included AC power adapter.
• The unit is constructed from high-quality polycarbonate material.
• The app is compatible with both iOS and Android for alarms and remote monitoring.

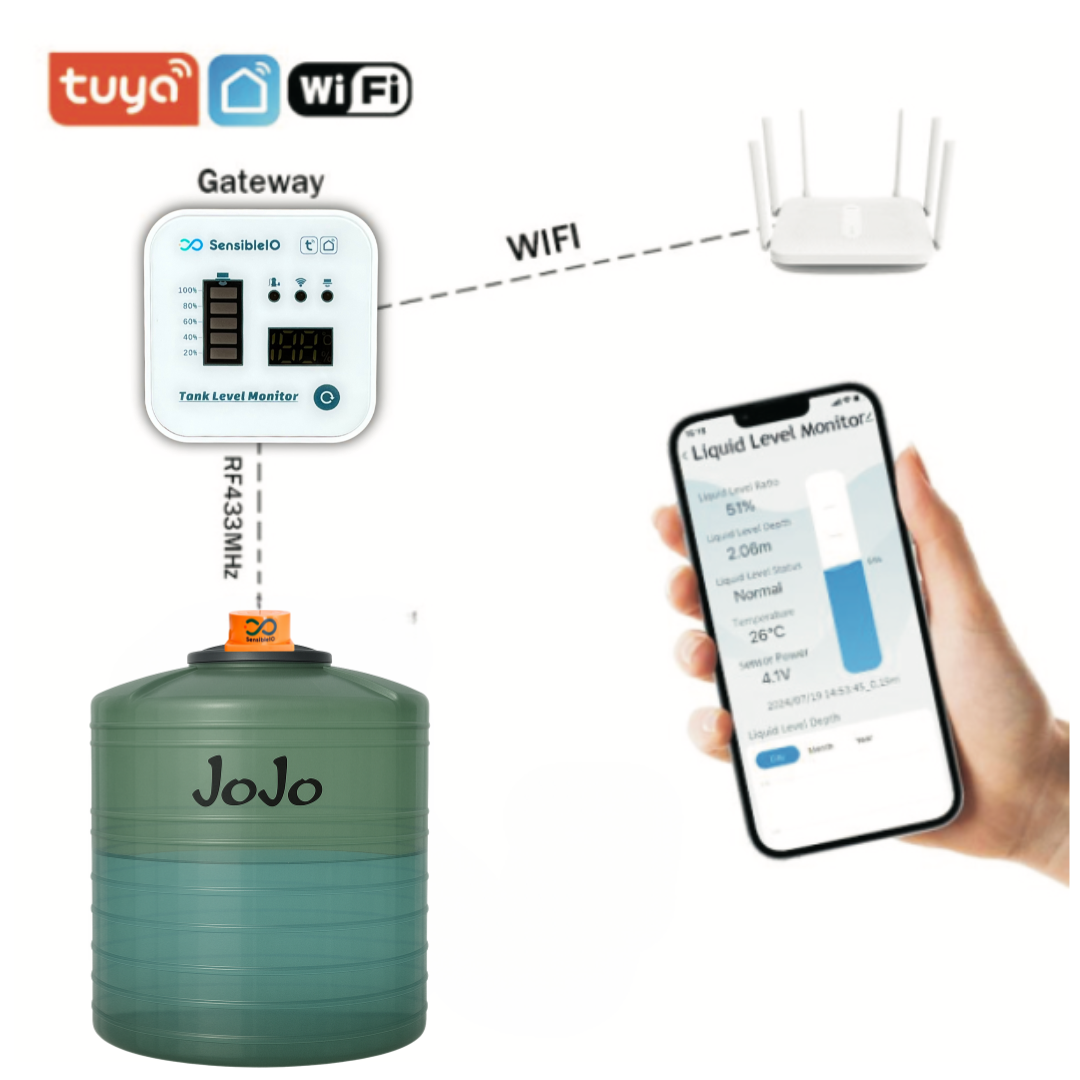

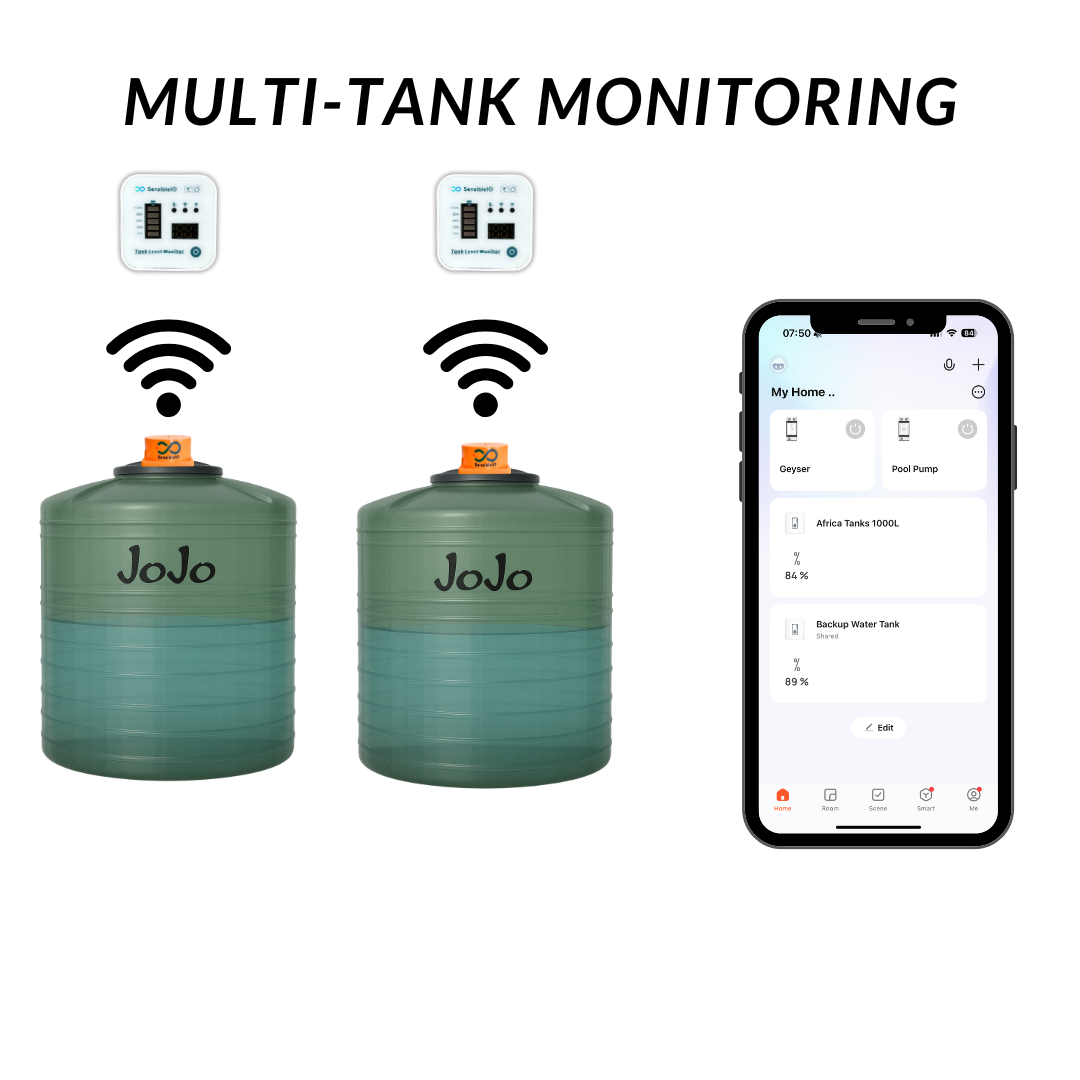

The RF water level sensor mounts to the top of your tank and uses ultrasonic pulses to measure the distance to the water surface. This reading is sent wirelessly to the RF-WiFi gateway, which relays the data to your smartphone app. The app then calculates and displays your tank’s water percentage in real time, with customizable high and low alarms to keep you informed.

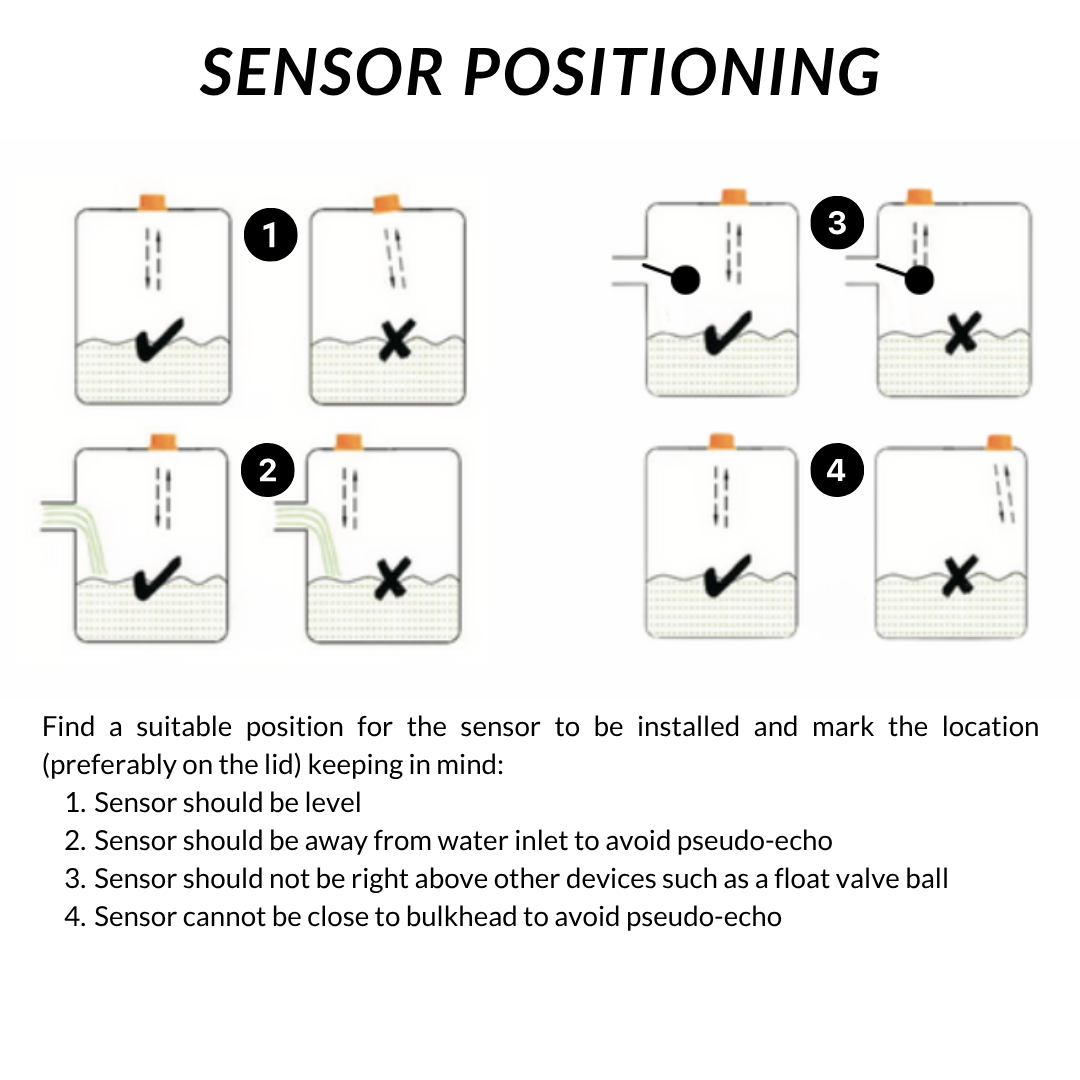

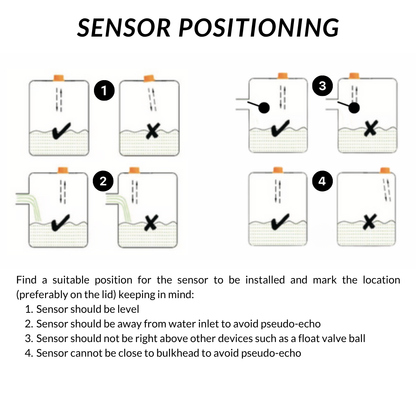

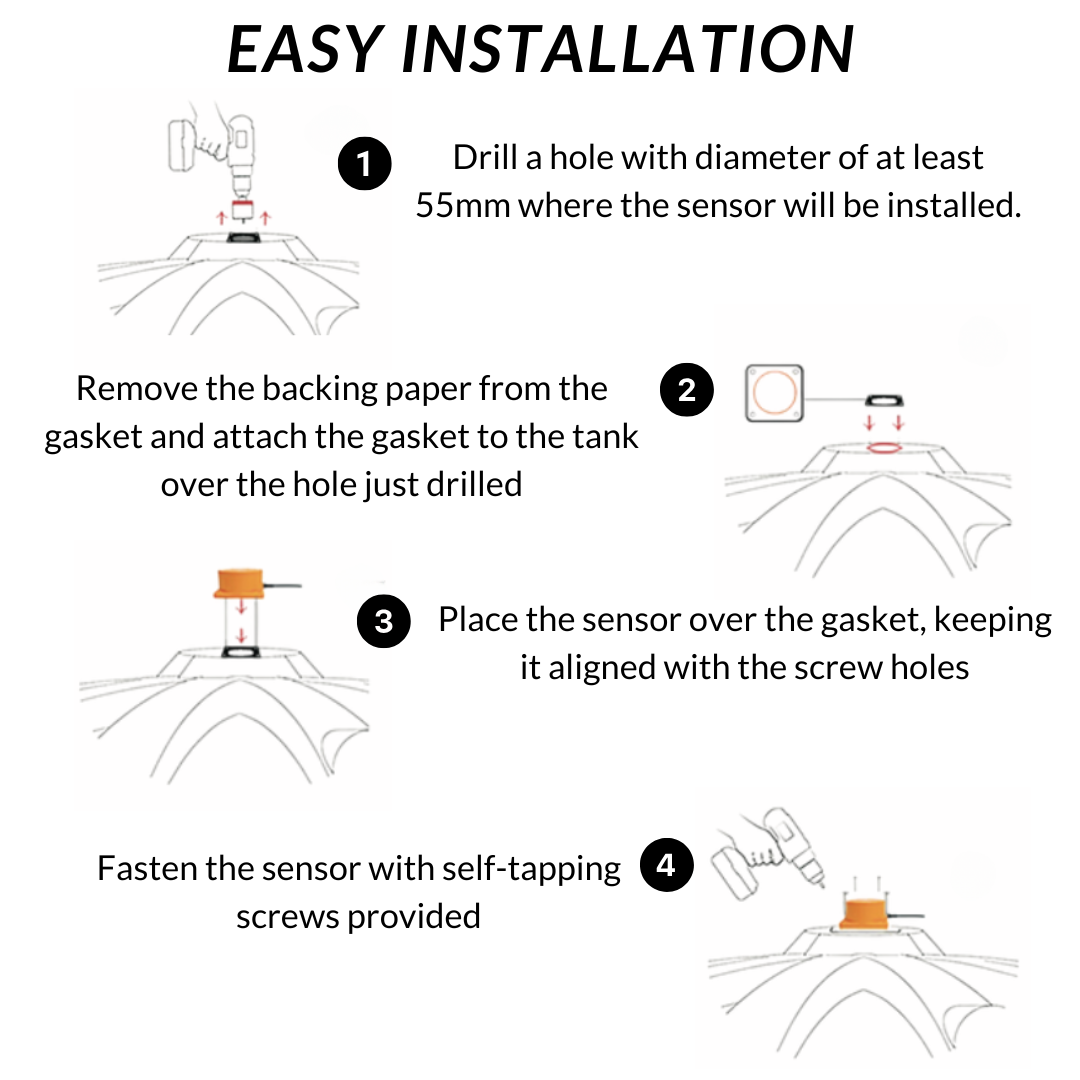

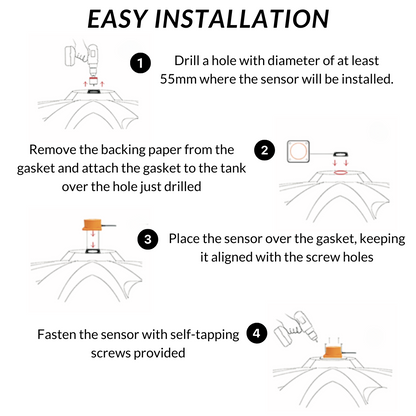

DIY-friendly setup in minutes. The built-in level indicator helps you align the sensor on the tank lid and pair with the RF–WiFi gateway quickly.

📥 Download Installation Manual (PDF)

• 1 x Long Range Tank Sensor (RF)

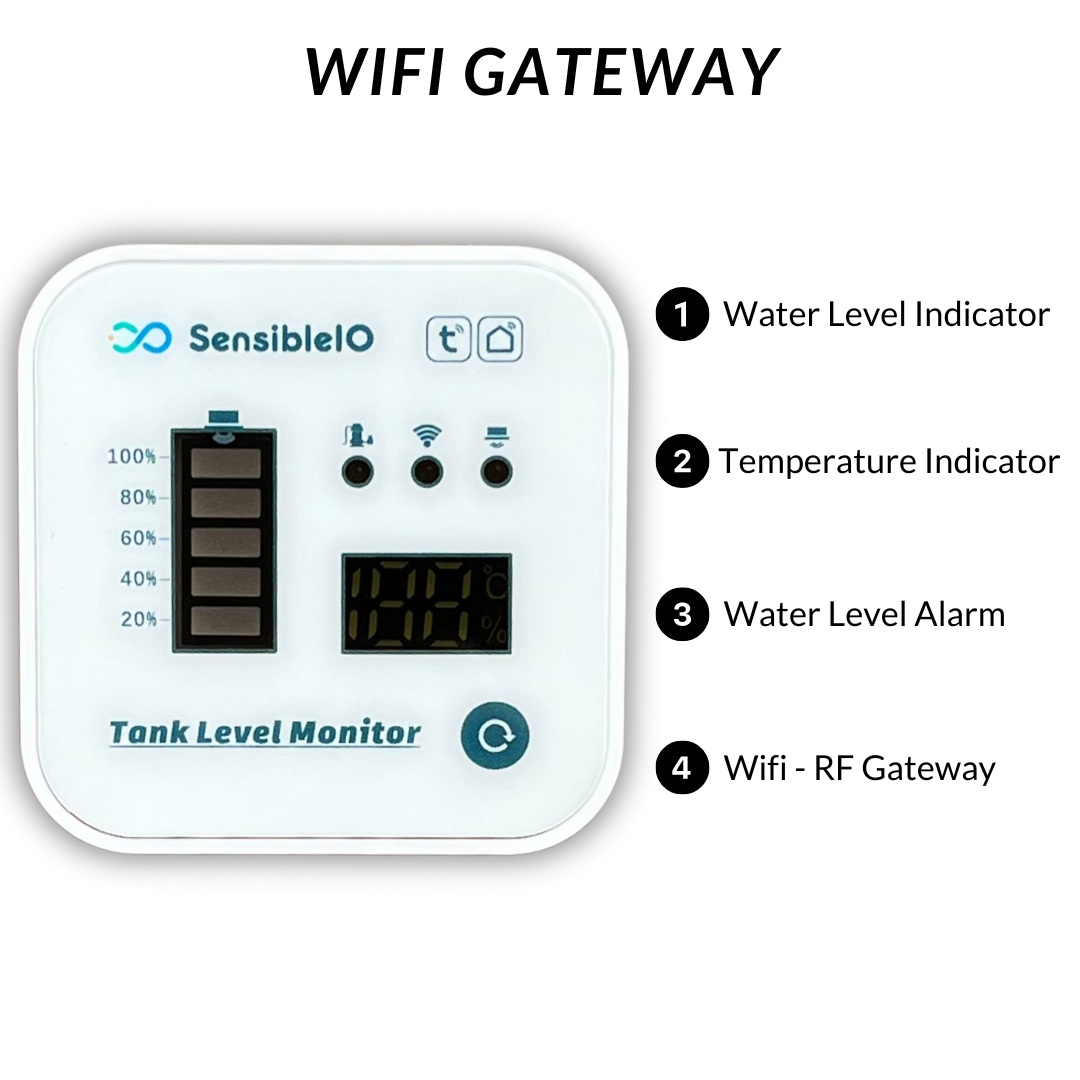

• 1 x Indoor Gateway Display Unit
• 1 x USB Power Cable
• 1 x Sensor Power Supply
• 4 x Self-tapping screws
• 1 x Foam Gasket
• 1 x Quick Start Guide
