Compact Float valve
Compact Float valve
Couldn't load pickup availability

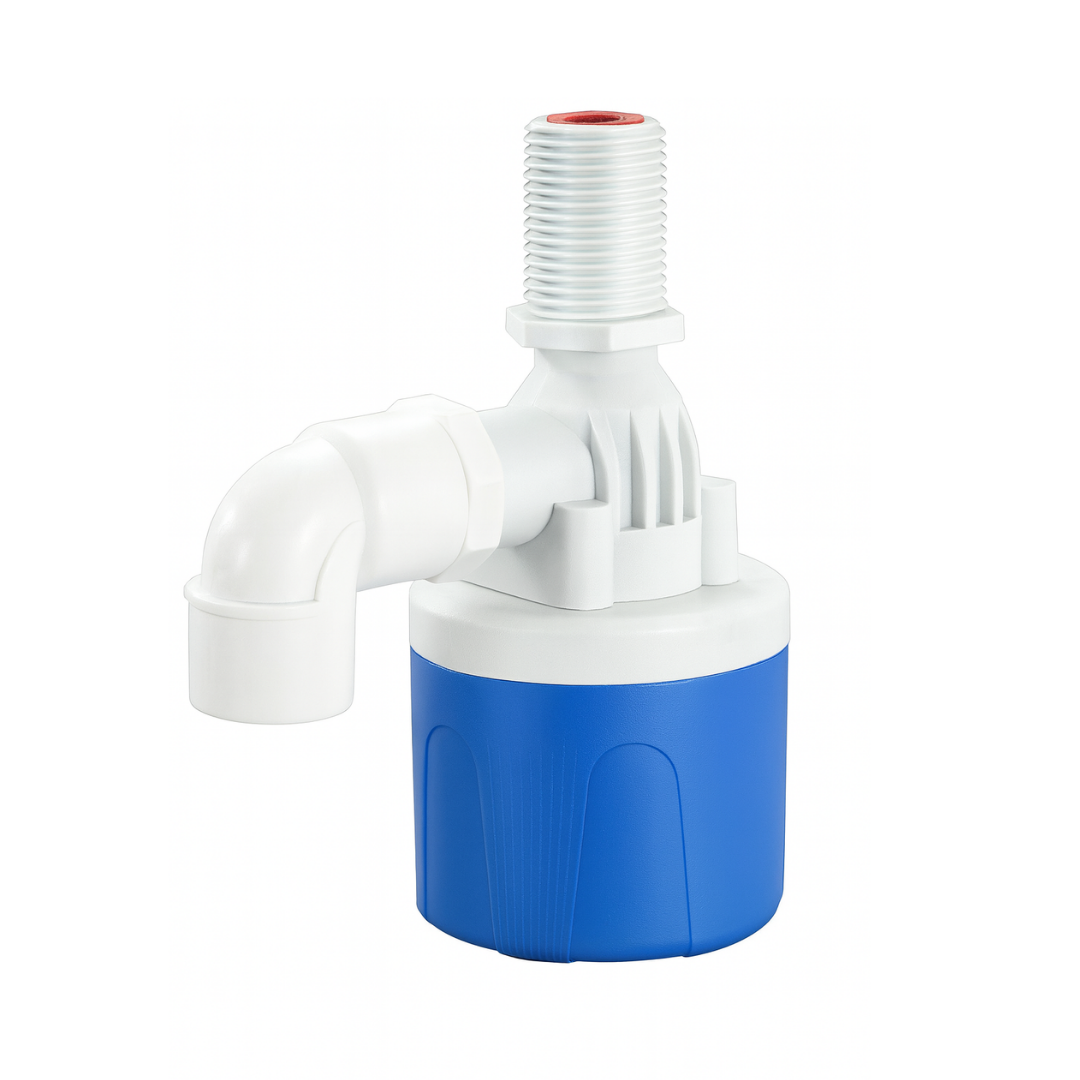

Keep your water tank automatically refilled without the bulky ball valve. This compact float valve delivers a steady 8 L/min flow rate and operates between 10 psi – 150 psi. Its small design makes it the perfect companion for ultrasonic water level sensors — it mounts neatly to the side of your tank, pours water straight down through the included elbow, and ensures accurate readings even while refilling.
Share
Let's get into the nitty-gritty details.
Specifications & Technical Details

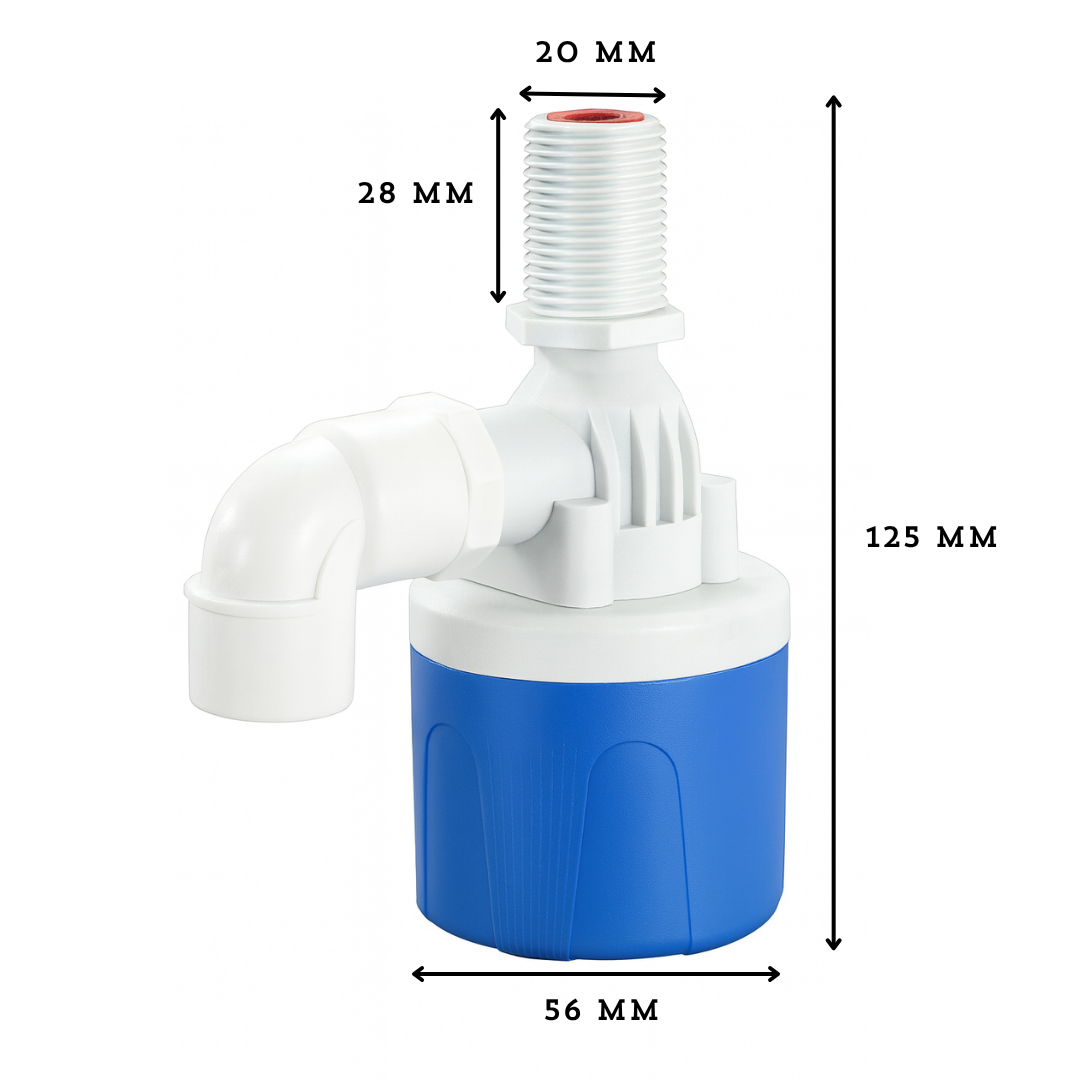

- Features a 20 mm connection for standard PVC fittings.

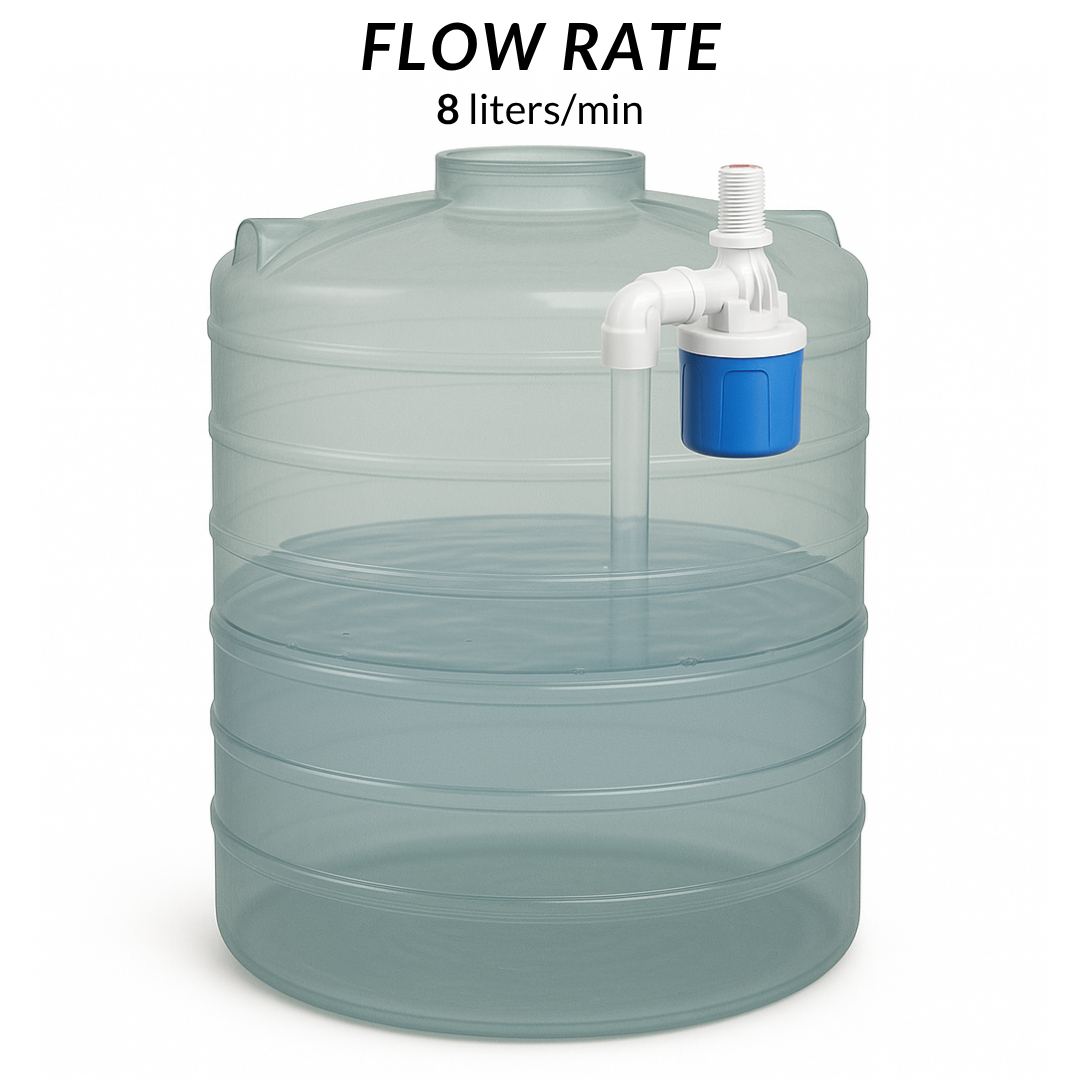

- Delivers a consistent 8 L/min flow rate for smooth refilling.
- Operates between 10 psi and 150 psi, ideal for both low- and high-pressure systems.

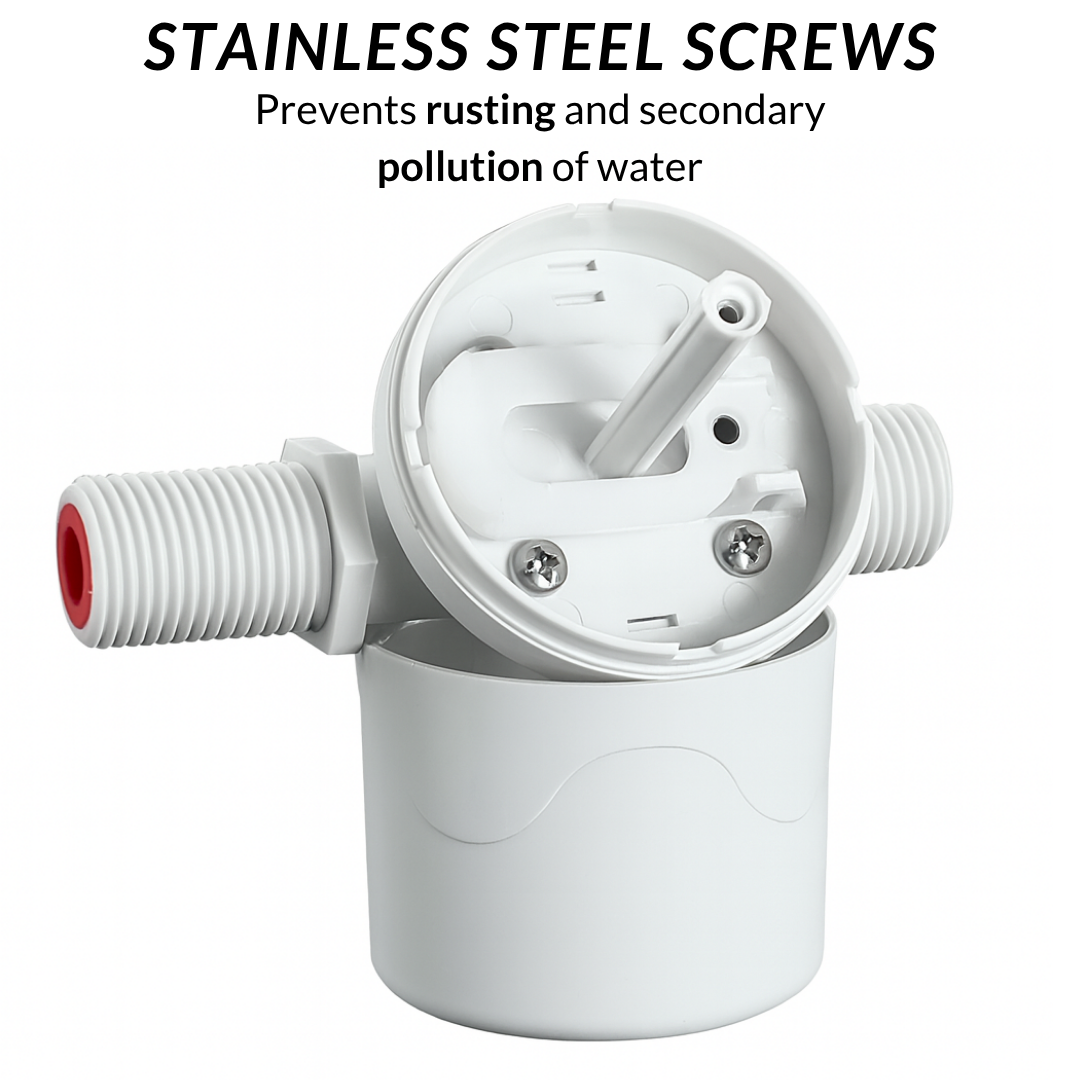

- Built with stainless steel screws for rust prevention and extended life.
- Compact side-mount design prevents interference with ultrasonic sensors.
- Comes with two inline filters to block debris and maintain clean flow.
How It Works
This automatic float valve controls the water level inside your tank by opening and closing based on internal pressure — no bulky ball float required. As the water level drops, the valve opens to allow flow, and once it reaches the preset level, the valve closes automatically. The included elbow fitting directs the water downward, reducing splashing and maintaining accurate ultrasonic sensor readings during refills.
Install & Setup
- Connect the 20 mm inlet to your water supply line using standard PVC fittings.
- Install the included filters on both the inlet and outlet to keep debris out.

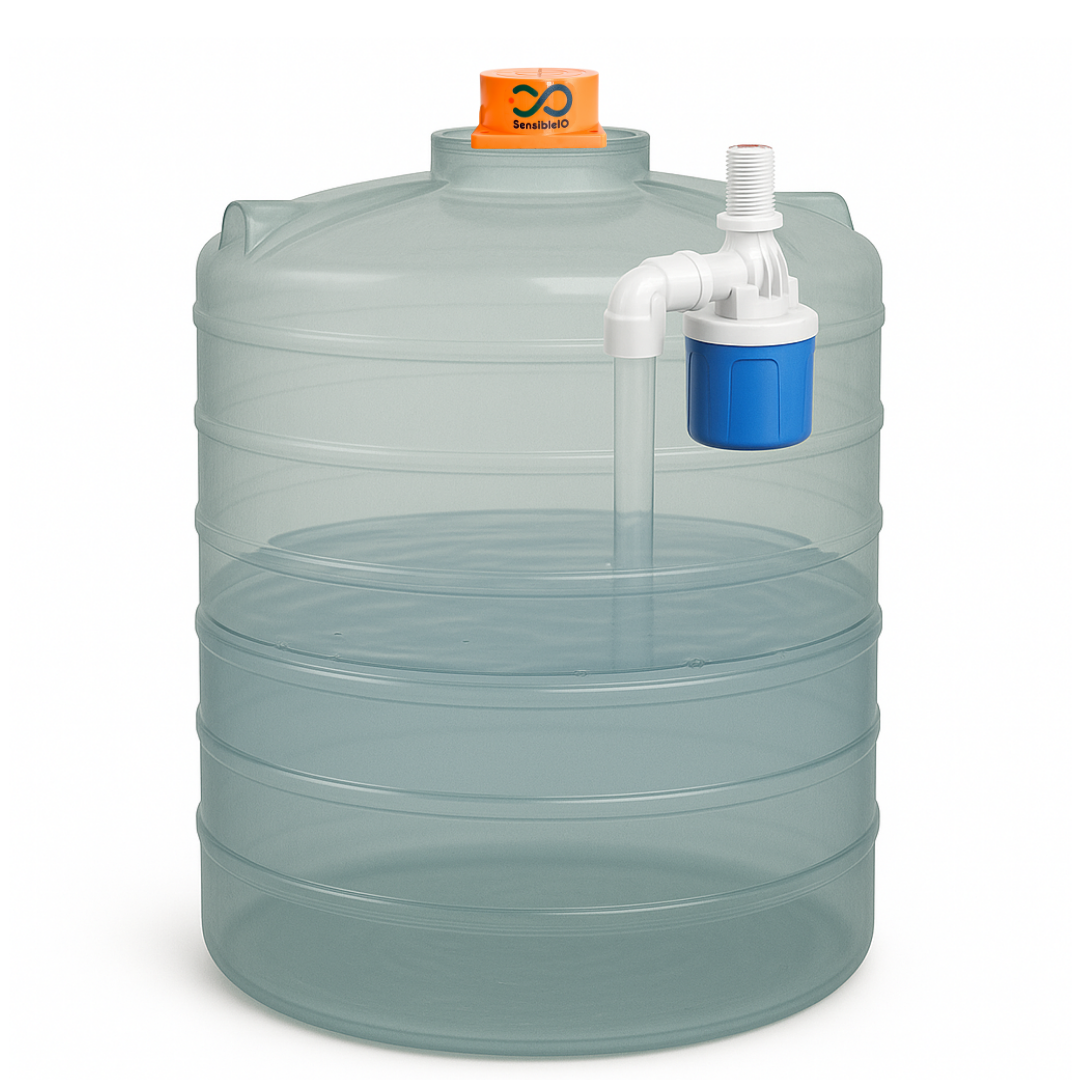

- Attach the included PVC elbow to the outlet, guiding the water straight down.
What's in the box
- 1 × Automatic 20 mm Float Water Valve
- 1 × 20 mm PVC Elbow Connector
- 2 × Inline Filters
